鋼絲繩夾
執(zhí)行標準：GB/T5976-2006
安全系數(shù)：
制造材料：鑄鐵
產(chǎn)品顏色：銀色
|

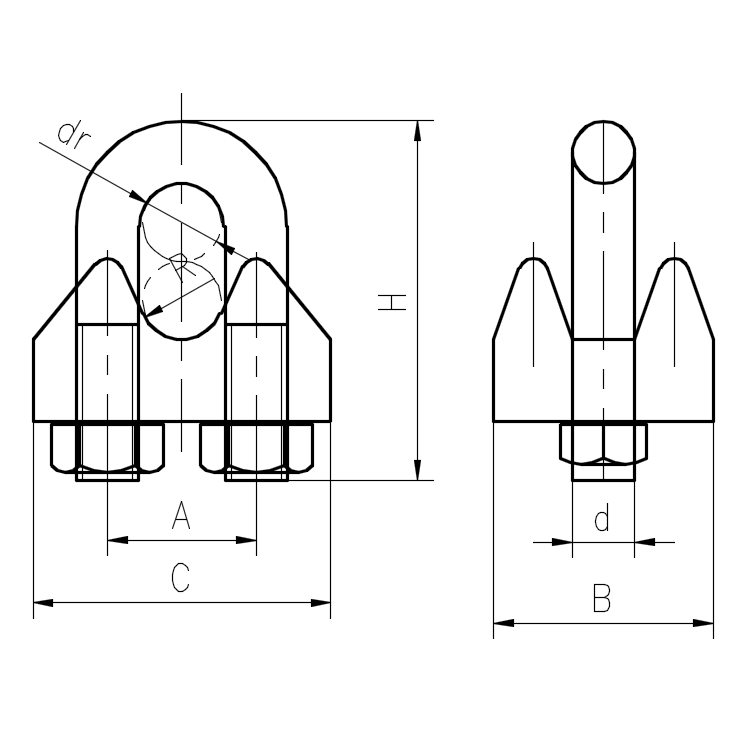

型號 |
A/mm |
B/mm |
C/mm |
R/mm |
H/mm |
d/mm |
重量/kg |
|
6 |
13.0 |
14 |
27 |
3.5 |
31 |
M6 |
0.034 |
|
8 |
17.0 |
19 |
36 |
4. 5 |
41 |
M8 |
0.073 |
|
10 |
21.0 |
23 |
44 |
5. 5 |
51 |
M10 |
0. 140 |
|
12 |
25.0 |
28 |
53 |
6. 5 |
62 |
M12 |
0.243 |
|
14 |
29.0 |
32 |
61 |
7.5 |
72 |
M14 |
0.372 |
|
16 |
31.0 |
32 |
63 |
8.5 |
77 |
M14 |
0.402 |
|
18 |
35.0 |
37 |
72 |
9.5 |
87 |
M16 |
0.601 |
|
20 |
37.0 |
37 |
74 |
10.5 |
92 |
M16 |
0.624 |
|
22 |
43.0 |
46 |
89 |
12.0 |
108 |
M20 |
1.122 |
|
24 |
45.5 |
46 |
91 |
13.0 |
113 |
M20 |
1.205 |
|
26 |
47.5 |
46 |
93 |
14.0 |
117 |
M20 |
1.244 |
|
28 |
51.5 |
51 |
102 |
15.0 |
127 |
M22 |
1.605 |
|
32 |
55.5 |
51 |
106 |
17.0 |
136 |
M22 |
1.727 |
|
36 |
61.5 |
55 |
116 |
19.5 |
151 |
M24 |
2.286 |
|
40 |
69.0 |
62 |
131 |
21.5 |
168 |
M27 |
3.133 |
|
44 |
73.0 |
62 |
135 |
23.5 |
178 |
M27 |
3.470 |
|
48 |
80.0 |
69 |
149 |
25.5 |
196 |
M30 |
4.701 |
|
52 |
84.5 |
69 |
153 |
28.0 |
205 |
M30 |
4.897 |
|
56 |
88. 5 |
69 |
157 |
30.0 |
214 |
M30 |
5.075 |
|
60 |
98.5 |
83 |
181 |
32.0 |
237 |
M36 |
7.921 |
